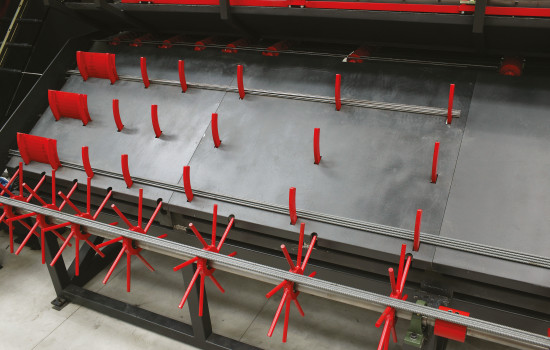

Completely automatic plant, electronically controlled, for the production of medium to large sized stirrups, straightened cut to length bars and bent/ shaped bars, with bends on one or both ends, up to a length of 12 m. The plant includes a straightening unit, with automatic diameter change and 6 hyperbolic rotors, and two independent mobile bending heads. The special buffer unit for the straightened bars allows both the straightening and bending phases to be carried out at the same time, thus ensuring a high production capability from the plant. Diameters ranging from 8 to 20 mm can be processed. Ability to process two wires simultaneously up to diameter 14 mm.

Description

𝐃𝐨𝐮𝐛𝐥𝐞 𝐟𝐥𝐲𝐢𝐧𝐠 𝐬𝐡𝐞𝐚𝐫𝐬 𝐰𝐢𝐭𝐡 𝐥𝐨𝐧𝐠𝐢𝐭𝐮𝐝𝐢𝐧𝐚𝐥 𝐦𝐨𝐯𝐞𝐦𝐞𝐧𝐭

The WRR 16 D – WRR 20 D use a cutting system whose technology is based on 2 independent flying shears that act through a longitudinal movement synchronized with the feed speed of the 2 single wire rods. This ensures a precise cut of the 2 wires being worked in compliance with the required measurement tolerances.
