Description

SHAPE FORMING AND STIRRUP BENDING FROM COIL
SYNTAX HS is the highest technological development in the field of multifunctional off-coil machinery (shape forming, stirrup bending and wire straightening) for flexibility, productivity and unparalleled obtainable product quality.

Processing capabilities

• Suitable for wire in coils with diameters from 8 to 16 mm
• Produces shapes and stirrups, straight or shaped bars with one or more bends on both sides up to 18 m long
• Handles both mass production (two wires up to Ø13 mm, optional 14 mm*) and single-elements processing (single strand up to 16 mm)

Flexible configurations

• Available in standard version with material flow from left to right and “R” REVERSE version with inverted flow, for optimal positioning in any production environment

High productivity

• A state-of-the-art drives and control system allow for unrivalled hourly productivity levels
• Reduces cycle times and maximizes production efficiency

Superior product quality

• AFS 4 (Advance Feeding System 4) anti-rotation and straightening system for obtaining closed stirrups and perfectly straight bars

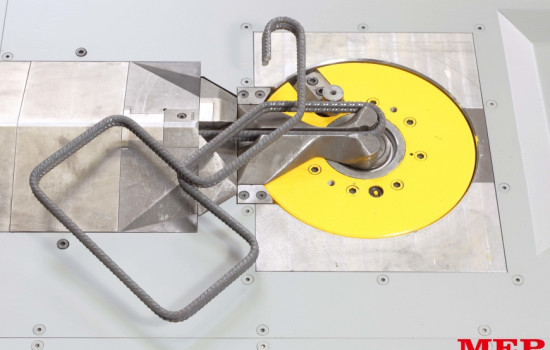

• Single bending unit for greater precision and flawless products
• Unique pins and devices expand the range of possible machining, reducing dimensional and shape limitations
• Obtains closed stirrups and coplanar shapes, eliminating any dangerous manual intervention of the operator during normal bending process

Automated collection

• Programmable 1– or 2-level device for selective collection of straightened bars or certain types of shapes
• Optional conveyor belt for safe and efficient collection and transfer of stirrups
• Increased productivity and reduced downtime usually required for evacuation of finished products

SYNTAX HS: the ideal choice for those seeking the best in terms of performance, versatility, and quality.
