Description

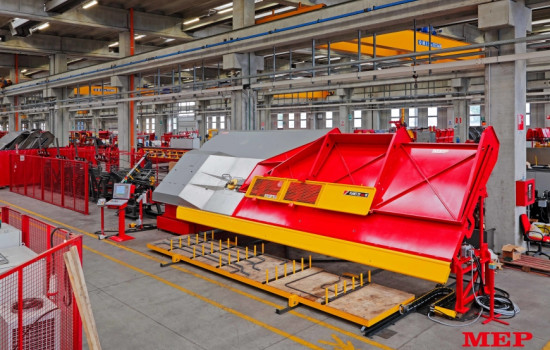

Planet 22 Plus W

SHAPE FORMING AND STIRRUP BENDING FROM COIL

Single wire ∅10 – ∅22 mm (#3 – #7)
Double wire ∅10 – ∅16 mm (#3 – #5)

• AFS 3 (Advanced Feeding System) Generation III
• The pressure exerted on each individual wire
• Complete power unit with winch, portable straightening unit and motorized pre-driving roller for pre-straightening
• Motorised collection trolley, belt conveyor and chain collector conveyor are available
• Bending pins accordingly to international rules
• The payoffs provide automatic motorization and are available in 2 versions: for rolls up to 5 t or up to 8,3 t

SHAPE FORMING AND STIRRUP BENDING FROM COIL

The PLANET Plus machines represents the highest technological development in the field of multi-unctional off-coil machinery (shape forming, stirrup bending, wire straightening and radius forming).

Advanced functionalities for a wide range of needs:

• Shape forming: Create shapes with one or more bends on both sides.
• Stirrup bending: Produce medium and large-sized flanges with the utmost precision.
• Straightening: Straighten coiled round bars quickly and reliably.
• Calendering: Produce calendered elements, even with variable bending radii, for maximum flexibility.
• Circle creation: Produce circles automatically for an optimized workflow.

Unparalleled advantages:

• Exceptional versatility: A wide range of accessories to meet the most diverse production needs.
• Complete automation: Eliminates manual operations, ensuring an optimized and continuous work cycle.
• AFS (Advanced Feeding System) and electronic pointer: Automatically manage the individual straightening of round bars for greater precision.
• Guaranteed safety: Eliminates manual intervention during the bending phase, protecting the operator.
• Single bending unit: Simplified and faster work cycle for increased efficiency.
• Exclusive pins and devices: Expands the range of possible processes, even for complex shapes.
• Innovative workstation design: Facilitates the production of large-sized brackets and profiles, the collection of the finished product, and its conveying to collection systems.
• Unlimited dimensional flexibility: Works on a wide range of dimensions and shapes, even complex ones, to meet any requirement.
• Variable radius bending software: “Virtual pin” function for large radius bends for maximum design freedom.

The PLANET Plus guarantees maximum flexibility, productivity, and quality of the finished product.
