Planet 22 Multiradius

Description

Planet 22 Multiradius

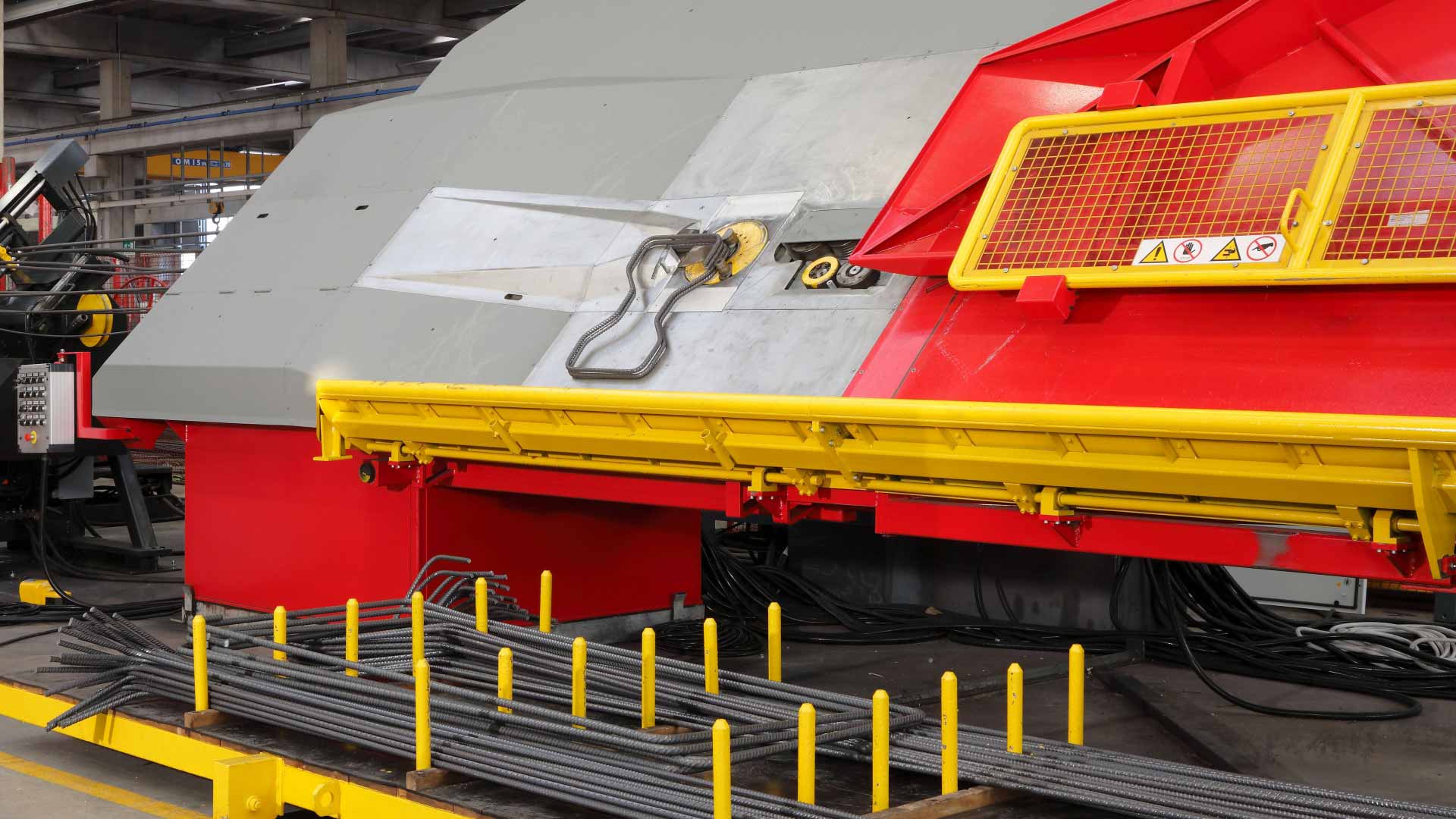

Automatic stirrup bender and shape-forming machine from coil

Full Technical Description

The Planet 22 Multiradius is a high-performance automatic machine designed for processing reinforcing steel from coil, integrating multiple operations in a single system:

• straightening
• cutting
• bending
• complex shape forming (multiradius)

It is engineered for industrial rebar processing plants, where productivity, flexibility, and precision are critical.

The machine combines advanced MEP technologies to allow continuous production of both standard stirrups and complex geometries, eliminating the need for multiple machines.

Key Technical Specifications

• Working diameter (single wire):

  Ø10 – Ø22 mm (#3 – #7)

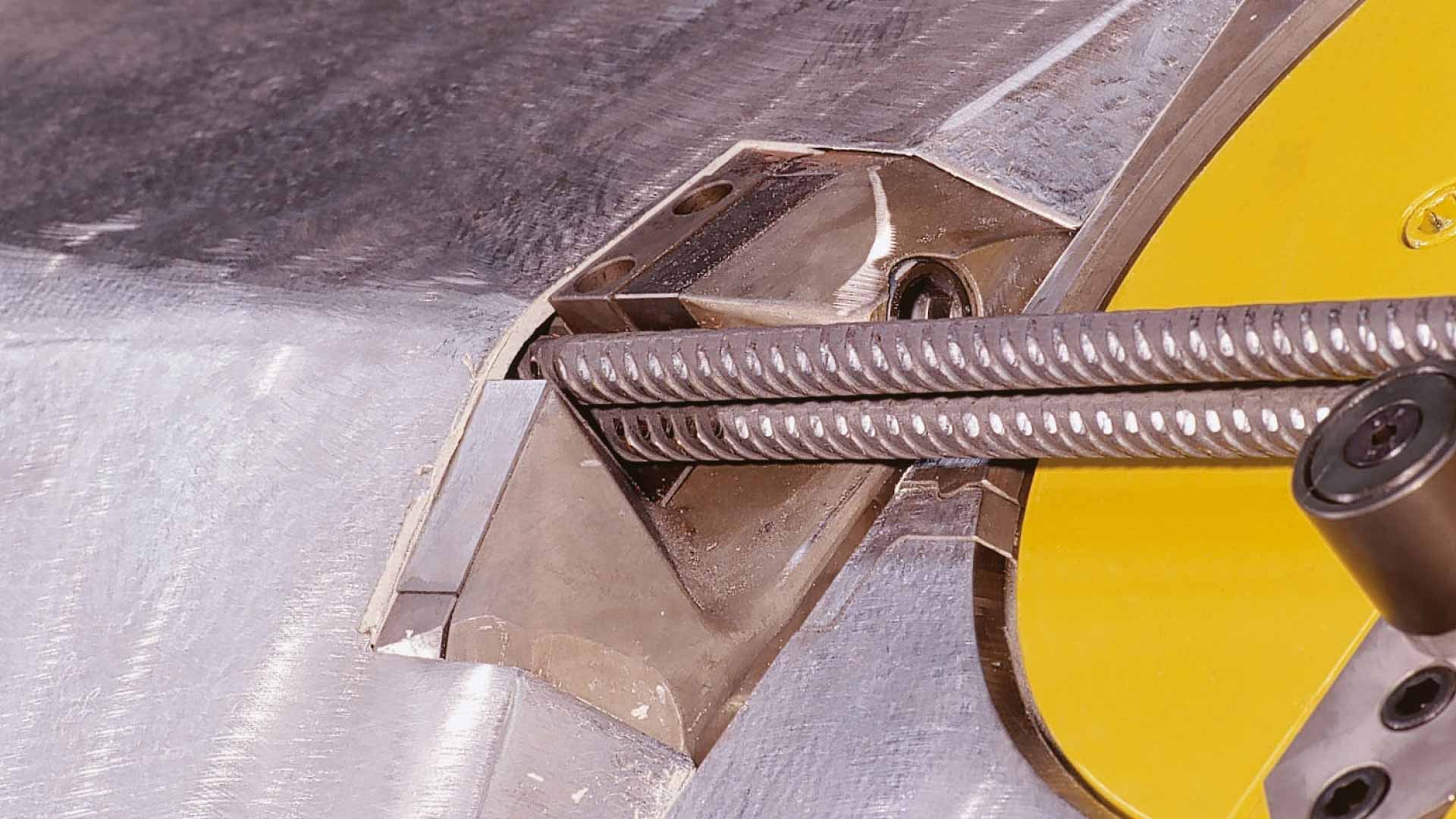

• Working diameter (double wire):

  Ø10 – Ø16 mm (#3 – #5)

• Production capacity:

  up to approx. 1,000+ stirrups/hour

• Material:

  rebar from coil

• Installed power:

  approx. 106 kW

Core Technology: MULTIRADIUS

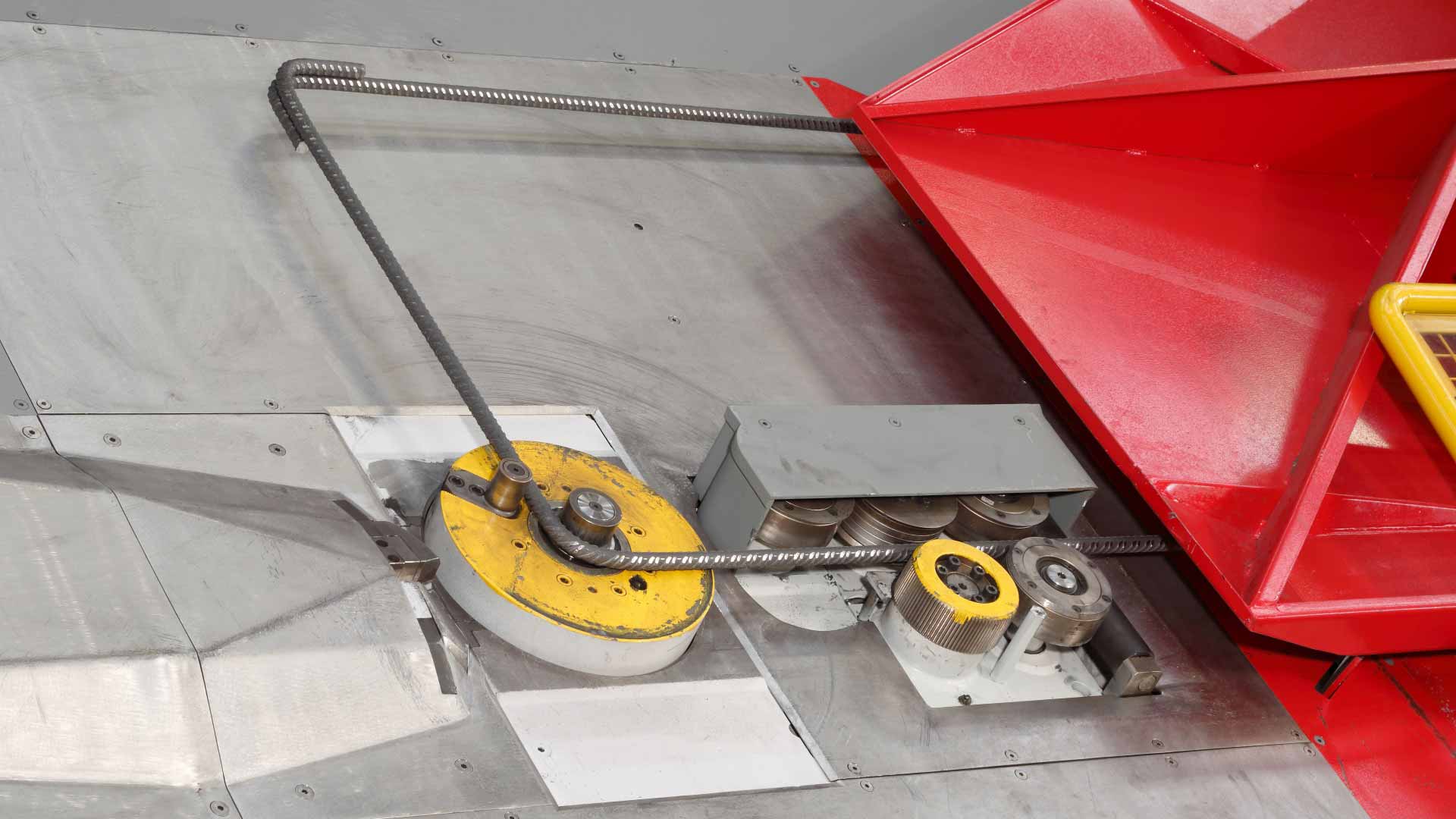

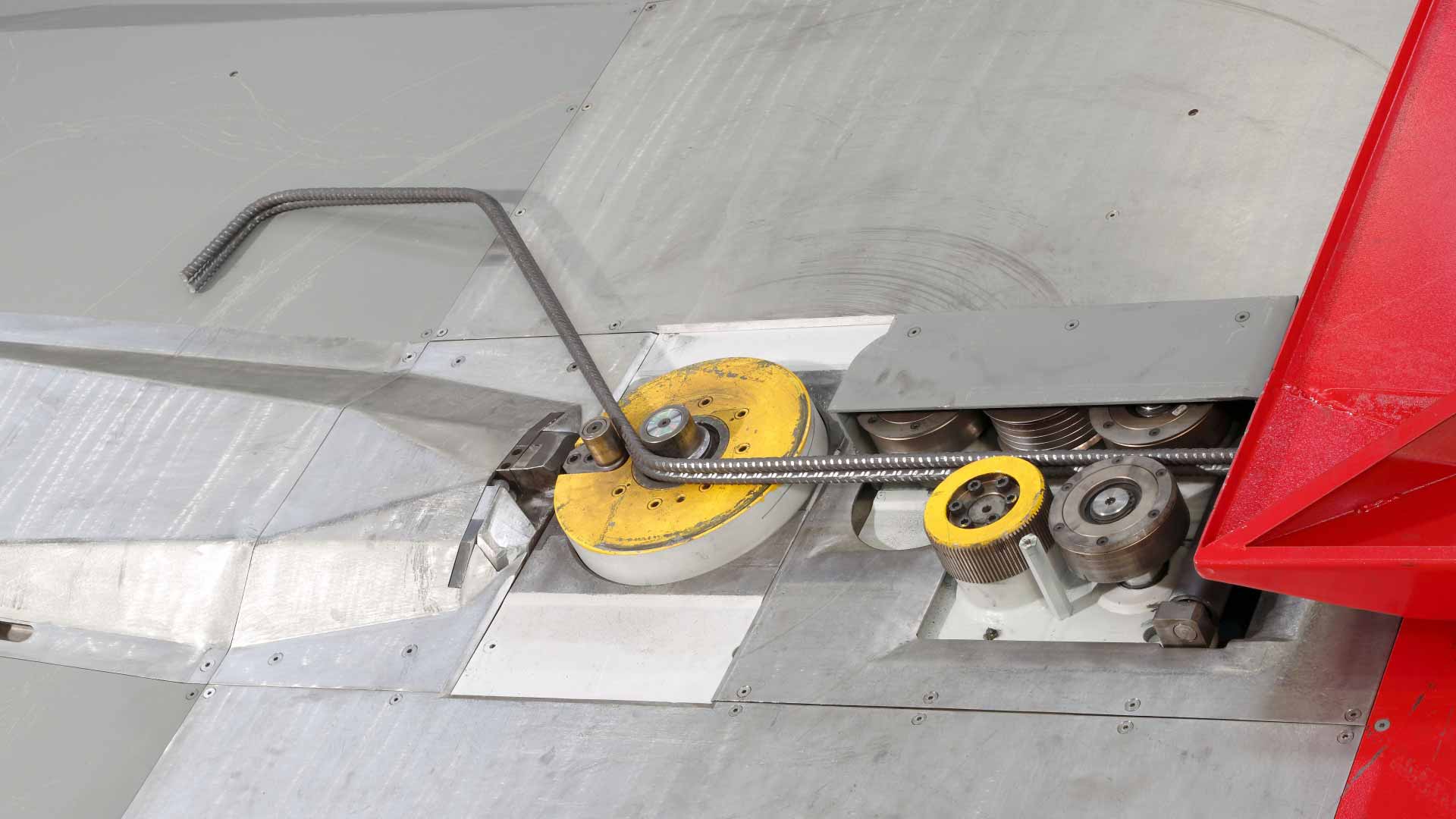

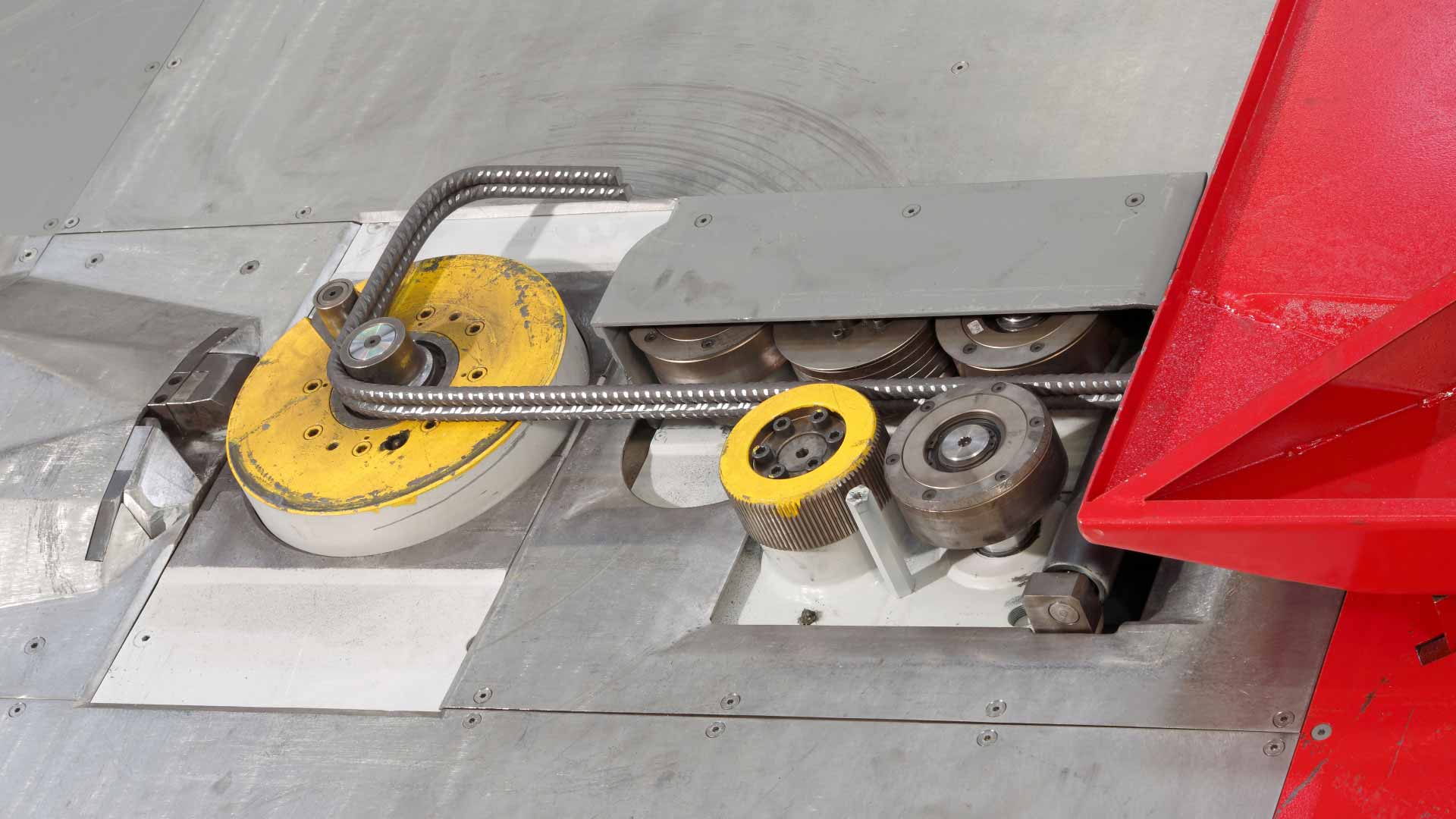

The defining feature of this machine is the Multiradius bending system.

What it enables:

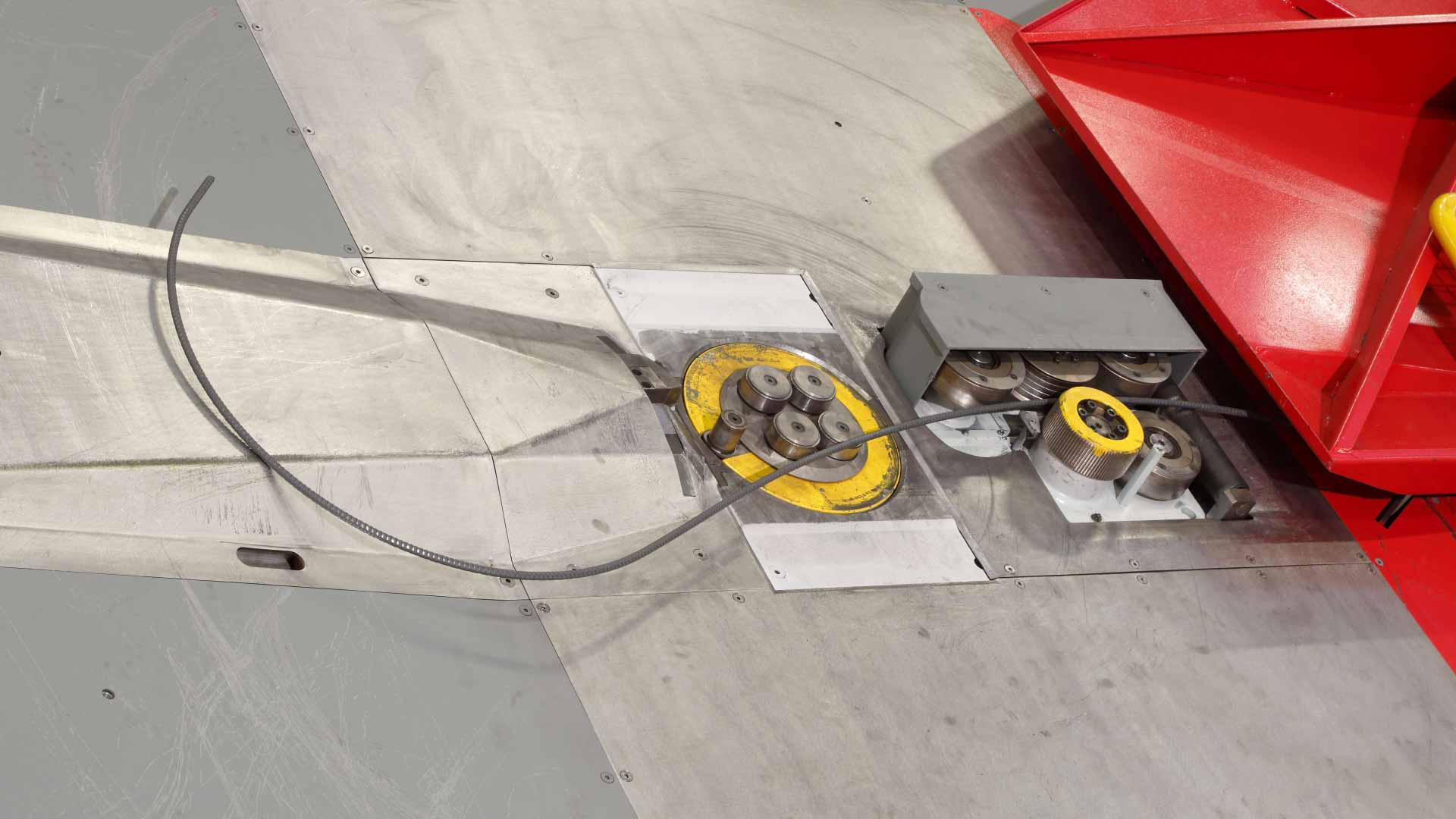

• continuous bending with variable radii
• not limited to fixed angles (90°, 135°, etc.)

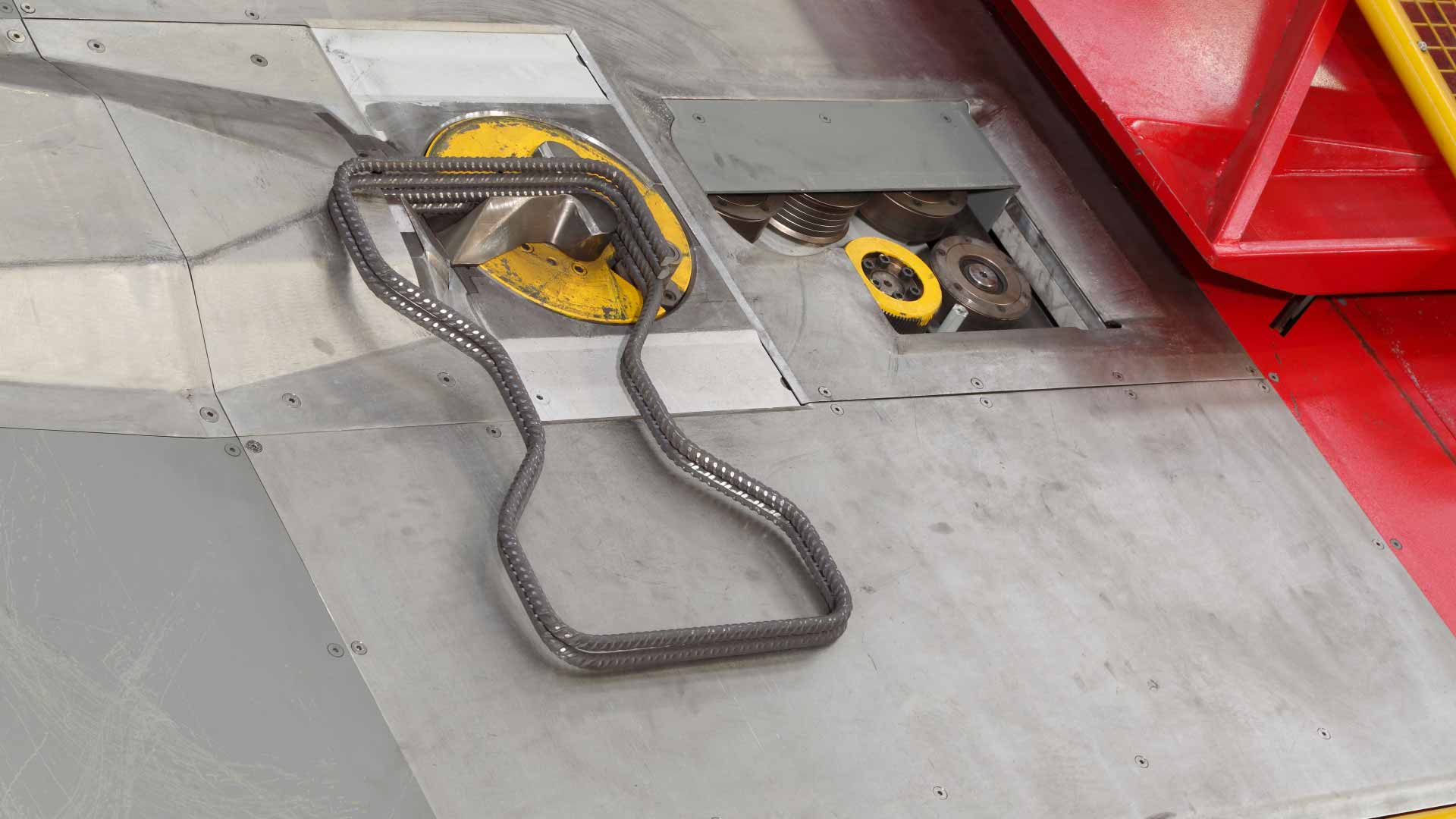

• production of complex 2D and 3D geometries in one cycle

Result:

• higher design flexibility
• elimination of secondary processing
• improved structural accuracy

Key Advantages

1. High Industrial Productivity

• double wire processing up to Ø16 mm
• optimized for mass production

→ reduces cost per ton

2. Maximum Flexibility

• single wire → complex shapes (beams, columns)
• double wire → high-speed stirrups production

→ one machine covers multiple production needs

3. Lower Operating Costs

• fewer machines required
• reduced labor dependency

→ significant OPEX reduction

4. Consistent Quality

• full electronic control system
• precise wire handling and bending accuracy

→ repeatable, high-quality output with minimal scrap

5. Complex Element Production

Ideal for:

• columns
• beams
• special stirrups
• engineered shapes

→ enables high value-added production

6.  Integration into Automated Lines

Fully compatible with:

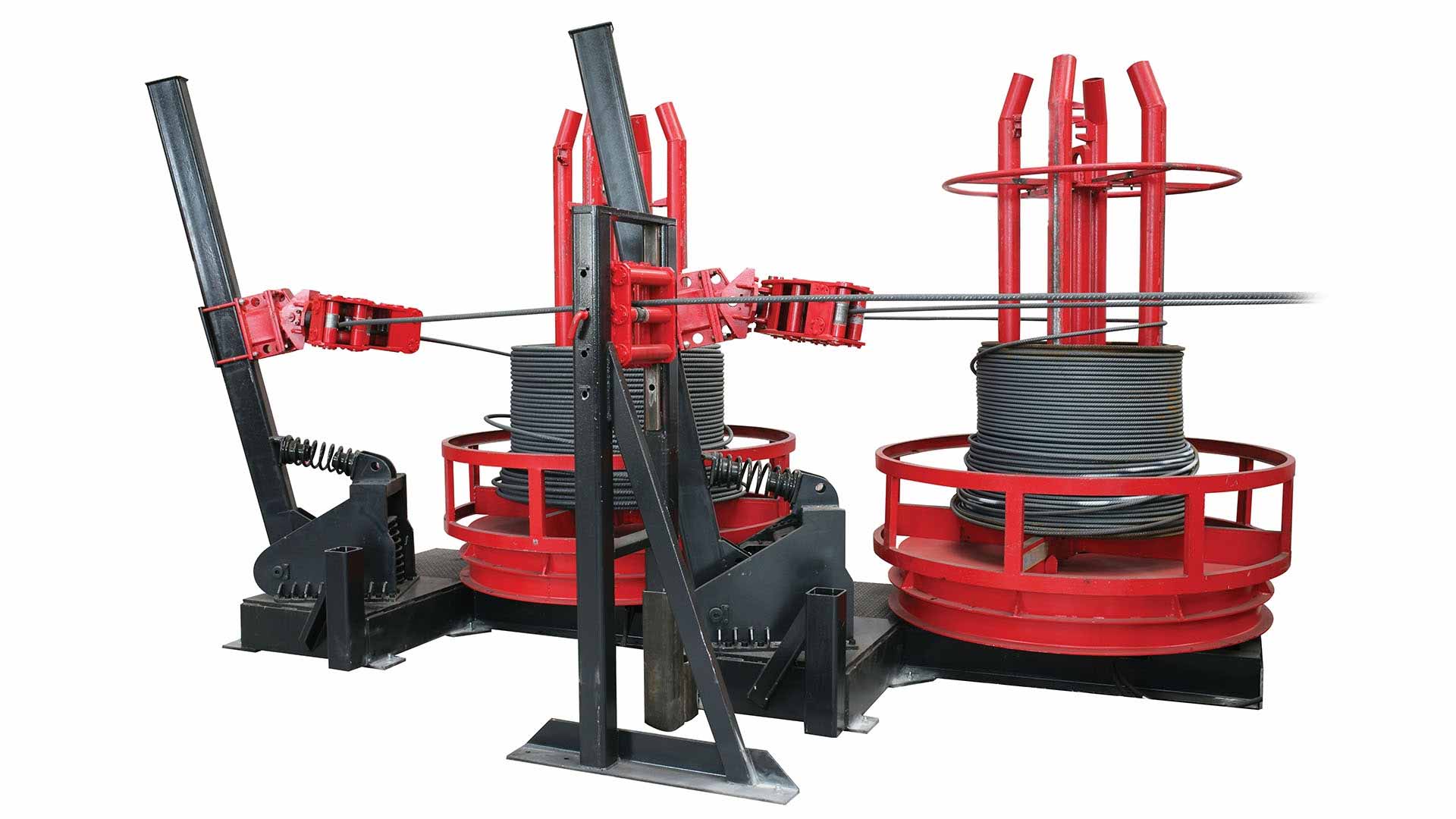

• automatic payoffs

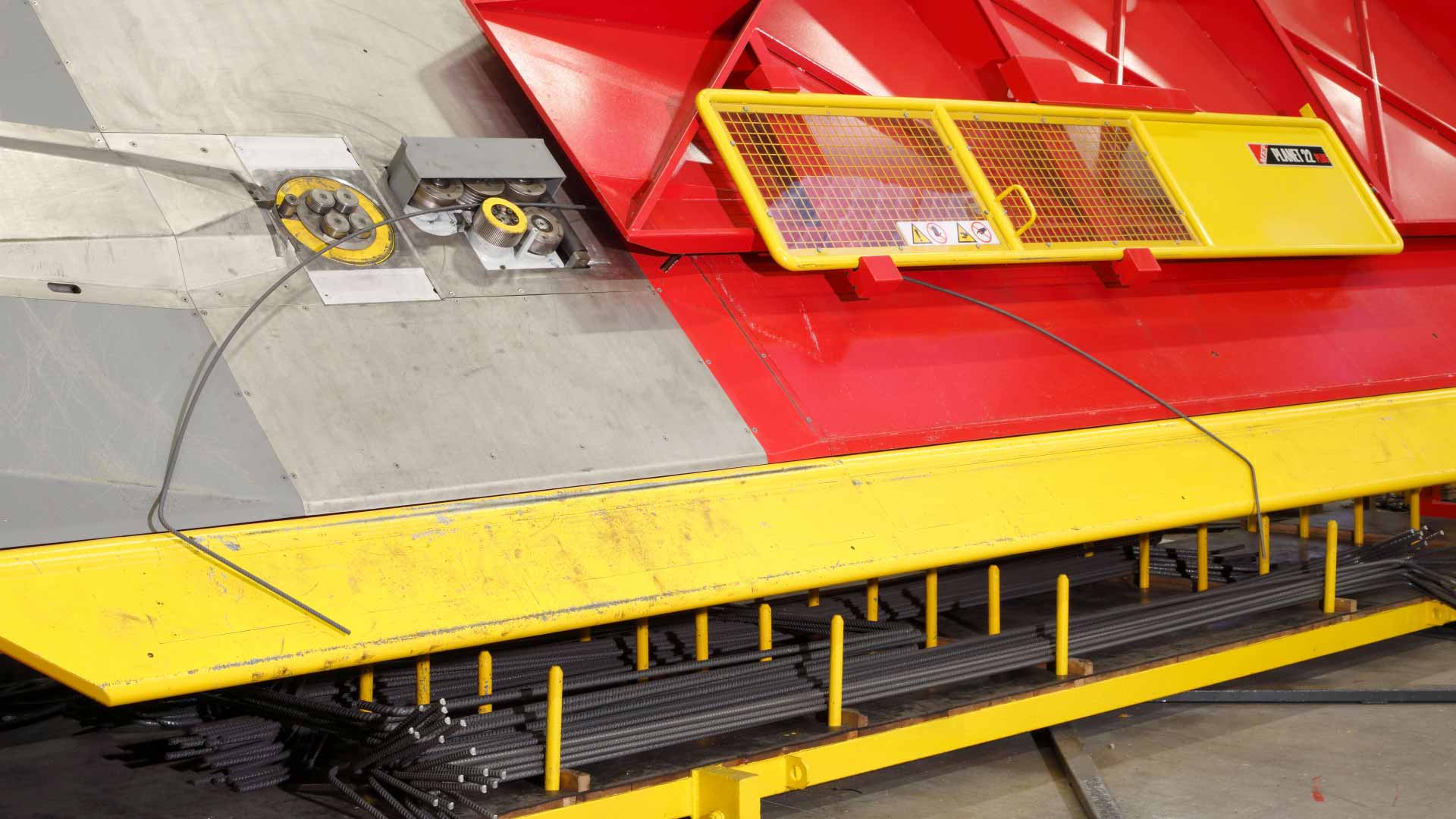

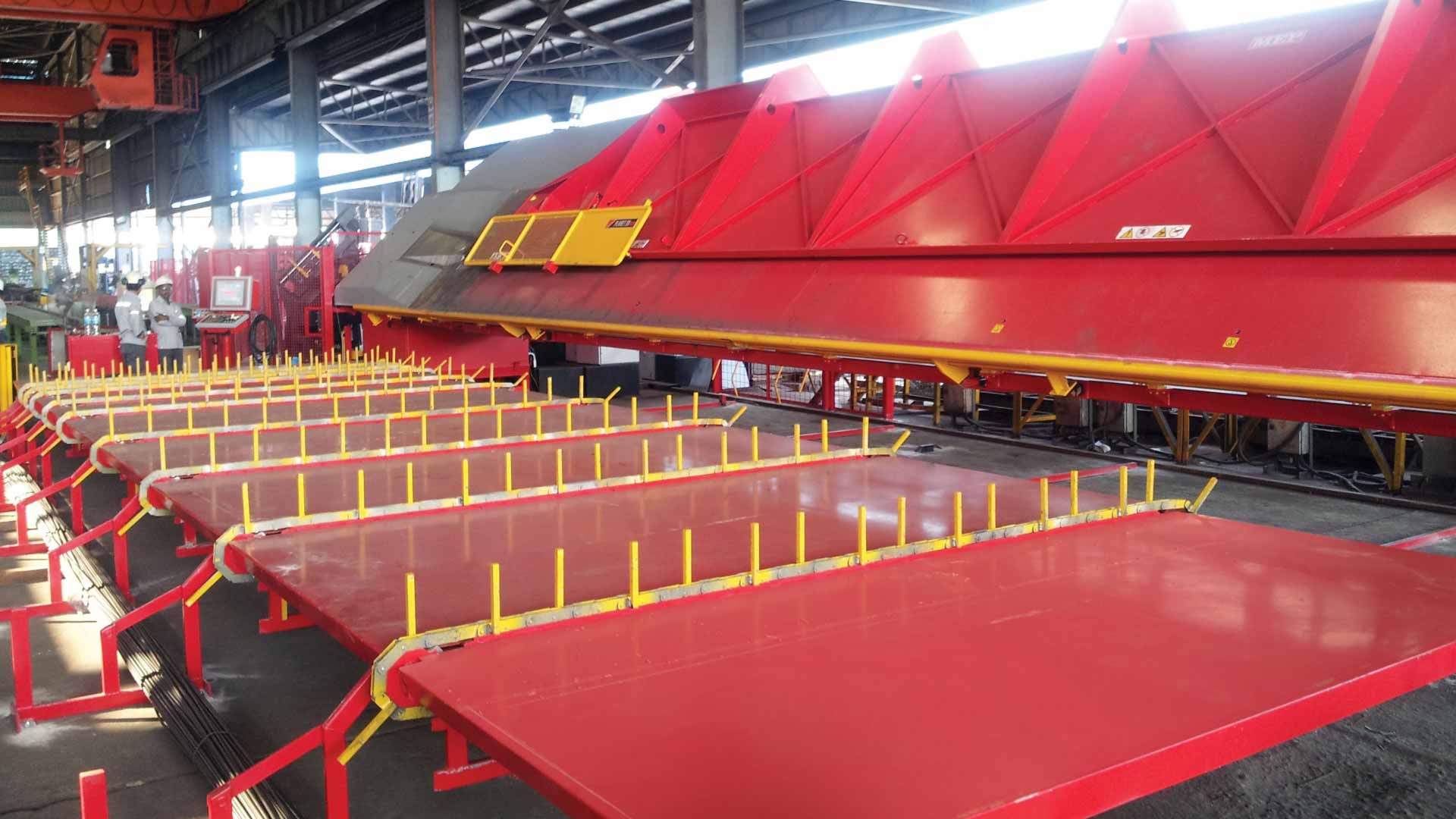

• collecting racks
• conveyor systems

→ scalable into a fully automated production line

7. Optimized Production Workflow

• fast diameter changeover
• efficient mixed production handling

→ ideal for companies with variable project requirements

Typical Applications

• rebar processing centers
• prefabrication plants
• infrastructure projects (bridges, foundations)
• industrial construction
