Multisystem BAR 3D

Multisystem Bar 3D

AUTOMATIC SHAPING AND RADIUS FORMING MACHINERY

1 BAR Ø12 – ∅40 /#4- #11
2 BARS Ø12 – 25 /#4- #8
3 BARS Ø12 – 16 /#4- #5
BENDING CAPACITY 3D Ø12 /#4

• The stirrups from medium to large sized

• 2D and 3D shaped with one or more bends on both side of the bar with angles up to ±180º (one bend opposite to the other)

• Shapes with 2 different bending radii required in automatic way

• “Patented” Automated bar loader

• Aligning every single bar

• Bar presence detector

• 1 or 2 bar-load selection

• 2 shaping units for 2D bends

• Automatic pins change

• Automatic unloading of finished products

Description

AUTOMATIC SHAPING AND RADIUS FORMING MACHINERY

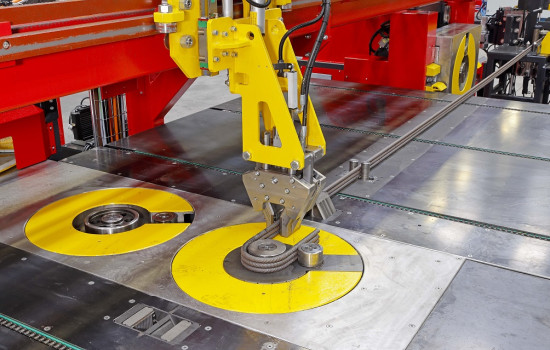

The MULTISYSTEM BAR 3D is available in two configurations, the standard and the reverse one. It produces the most varied shapes with 2D and 3D bends in a clockwise and counter clockwise direction on the two ends of the shape, with angles up to a maximum of ± 180°.

WORKABLE DIAMETER RANGE

∅10 – ∅40 mm / #3 – #14

BENDING CAPACITY

1 bar Ø40 mm / #11
2 bars Ø25 mm / #8
3 bars Ø16 mm / #5
4 bars Ø12 (Ø 10*) / #4 (#3*) – *upon request

KEY FEATURES

  • Fully automated process from bar loading to finished product evacuation
  • Millimetric precision
  • Automatic pin change
  • Up to 10 pins with different bending diameters
  • Monoblock design for quick and safe tooling
  • Bends with variable curvature radius
  • Customizable unloading positions

Additional information

WORKABLE DIAMETER RANGE

∅10 – ∅40 mm / #3 – #14
BENDING CAPACITY

1 bar Ø40 mm / #11, 2 bars Ø25 mm / #8, 3 bars Ø16 mm / #5, 4 bars Ø12 (Ø 10*) / #4 (#3*) – *upon request
